3D Facade Panels
Sculptural facades. Seamlessly finished.
Our new 3D facade panel system has been especially developed for clients who want texture and depth on a building's exterior, without visible joins.
Each panel is installed in a set sequence, then finished on site with our X-Bond Microcement and Liquid Membrane. The result is one continuous, textured surface that reads as a single sculpted form rather than a series of panels.
How It Works
The system has three stages. Panels are purchased individually, so the system scales from a feature wall to a full elevation.
Builders can buy the panels and install them by following our installation guide. If you're based in Victoria, our team can install the panels for you. Either way, the Liquid Membrane and X-Bond finish is applied by Alt Surfaces or a certified X-Bond installer, so every facade gets the same seamless result.so every facade gets the same seamless result.
Stage 1
First, the panels are fixed to the facade in a set layout so the pattern carries across the whole wall.
Stage 2
Next, the joins are sealed with Liquid Membrane to create a continuous base.
Stage 3
Finally, X-Bond Mineral finish is applied over the full surface for a seamless, textured finish.
Why specify?
Seamless finish
Panel joins disappear under the finish, leaving one continuous, sculptural surface across the whole facade.
Six Designs
Six 3D patterns give you distinct architectural expression without the cost or lead time of custom fabrication.
Proven Craft
It's finished with X-Bond, the hand-applied microcement Alt Surfaces has been installing across Victoria for over 25 years.
Flexible Installation
Builders can install the panels using our guide, or our Victorian team can do it, with the finish applied by Alt Surfaces or a certified X-Bond installer.
Choose Your Profile

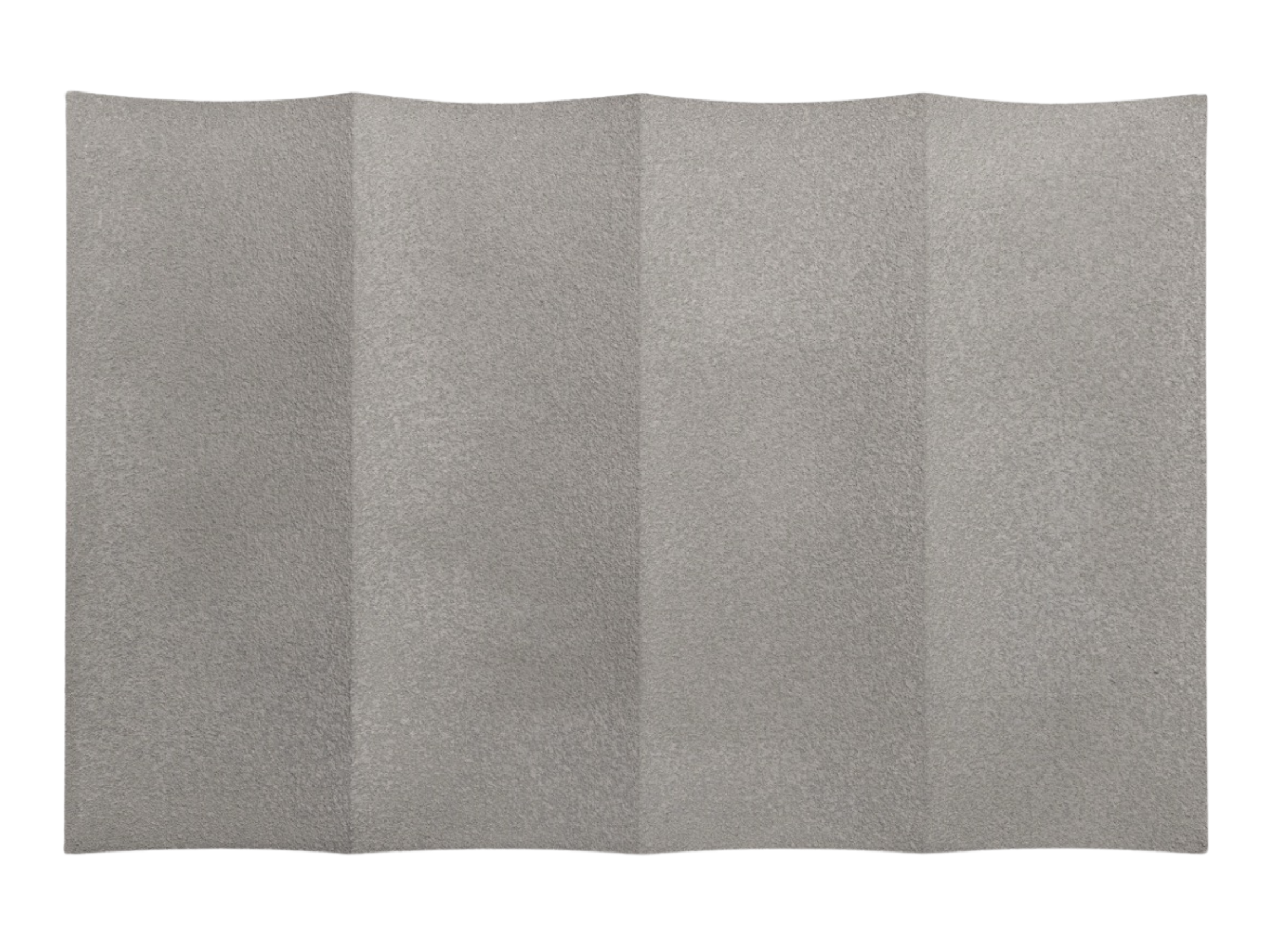

Flow

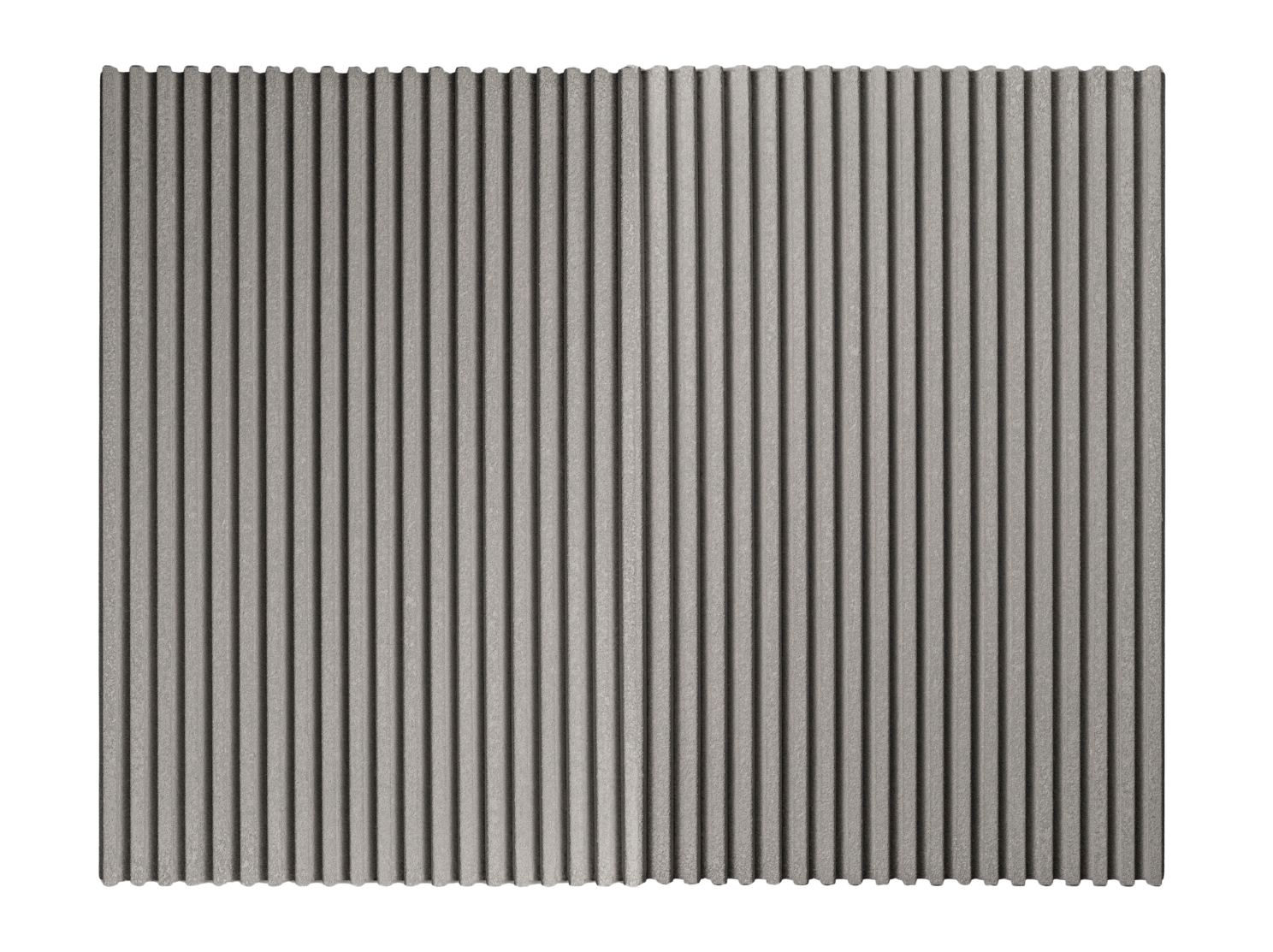

Linea
Fine, straight vertical lines that create crisp shadow detail and clean architectural rhythm.
Broad, sweeping curves that move across the facade like long, slow waves.
Sharp, narrow ribs that give the facade a bold, contemporary edge.
Closely spaced, rounded flutes routed into the panel for a softly textured, tactile surface.

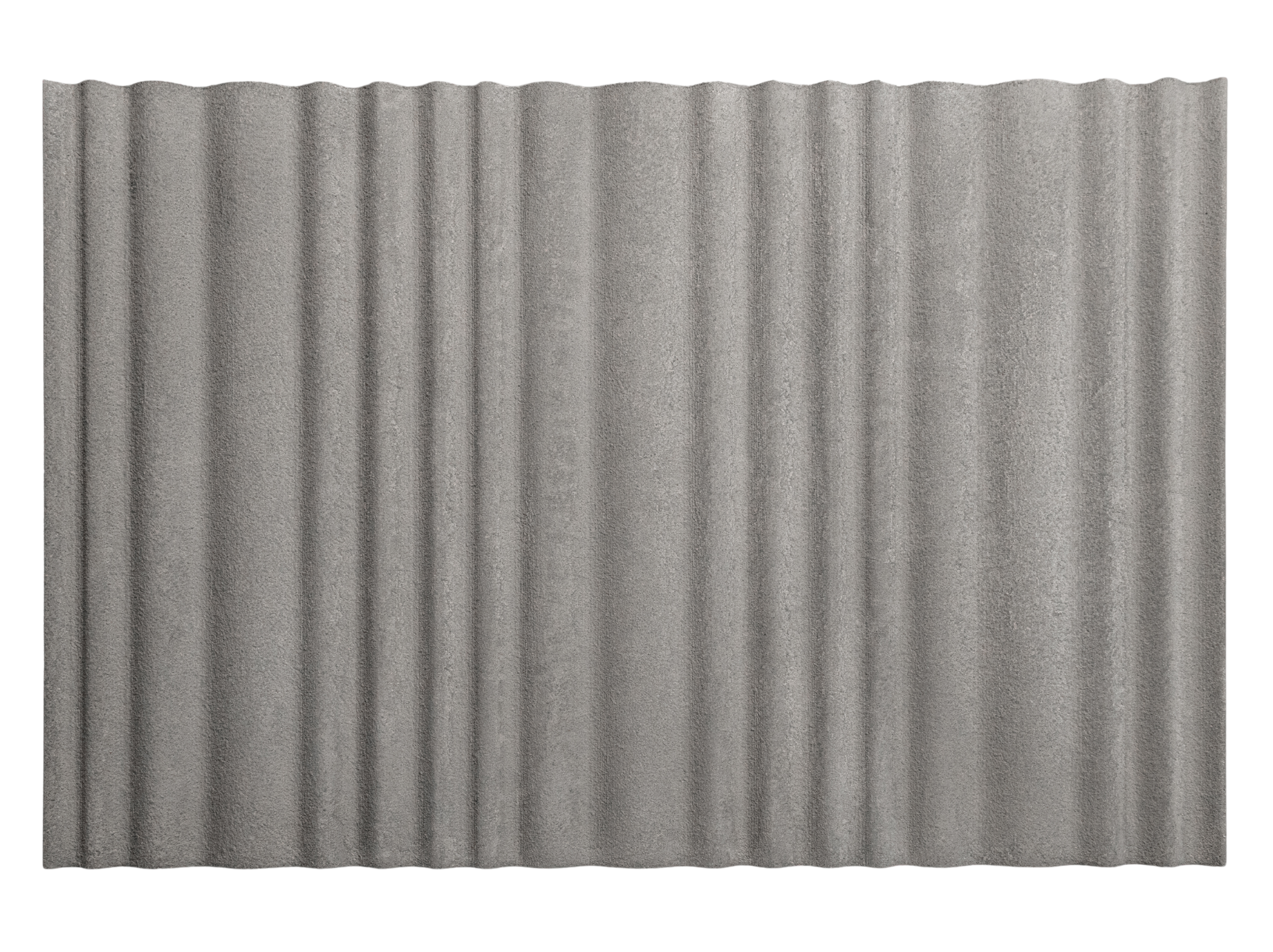

Ripple
Fine, straight vertical lines that create crisp shadow detail and clean architectural rhythm.
Wide, flat profiles defined by angled grooves for a structured, tailored finish.
Six 3D profiles, each designed to run continuously across the facade.

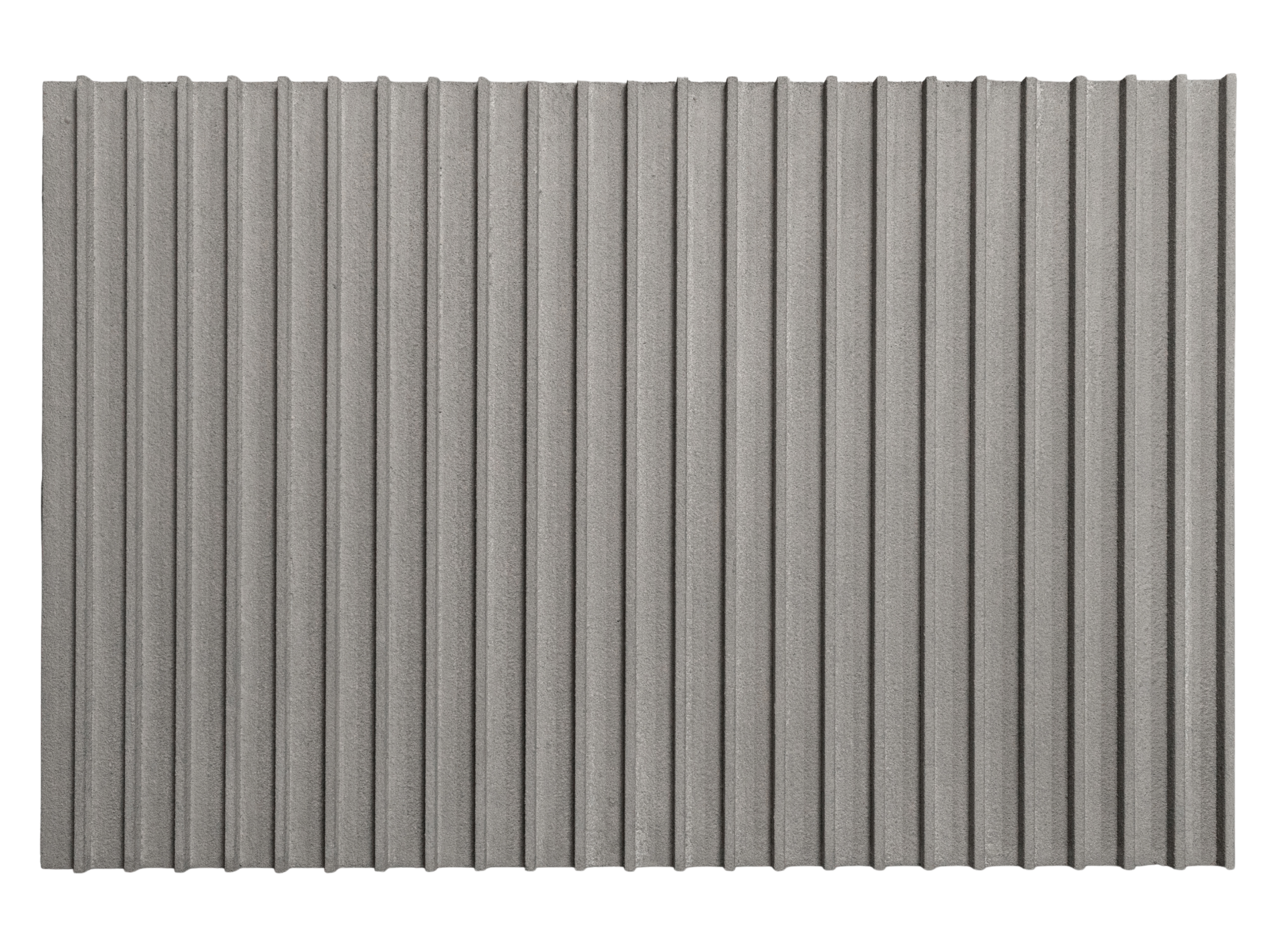

Blade

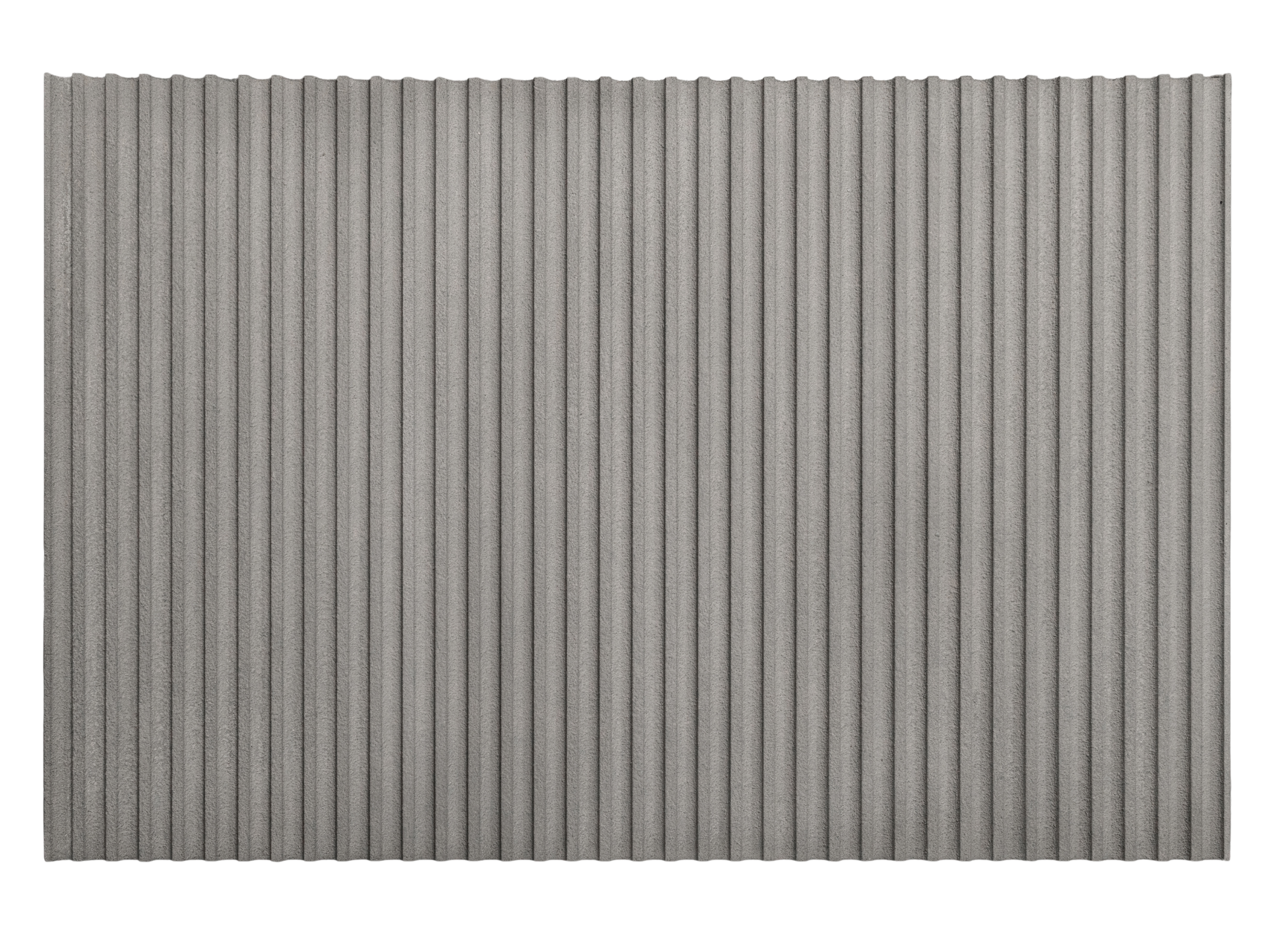

Reed

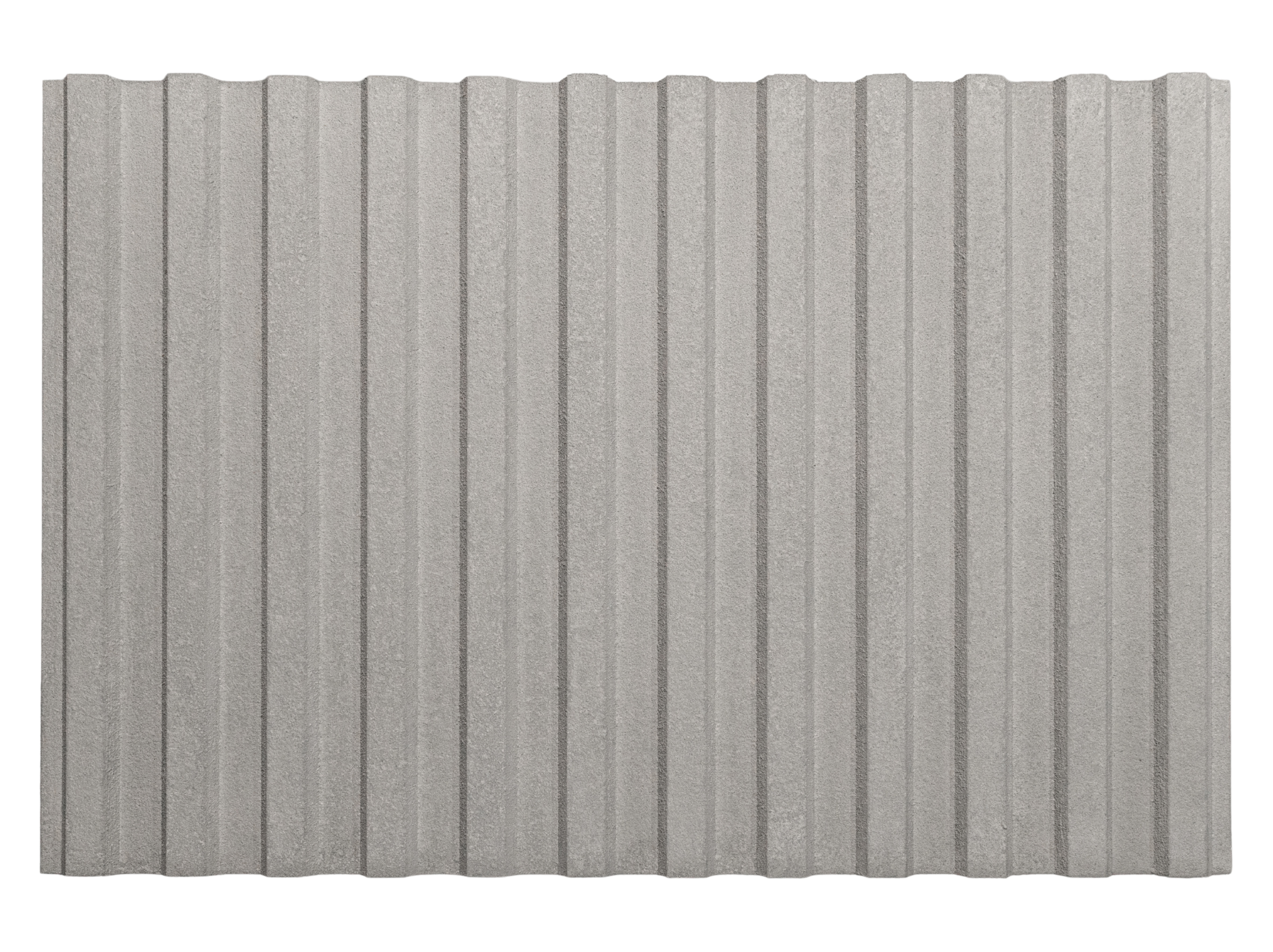

Bevel
Specifying a facade?
Fill out the form to talk to our team about our 3D Facade Panels for your next project. We can provide technical information and pricing for your design or organise a visit to our showroom to view the range.
Proven on the coast

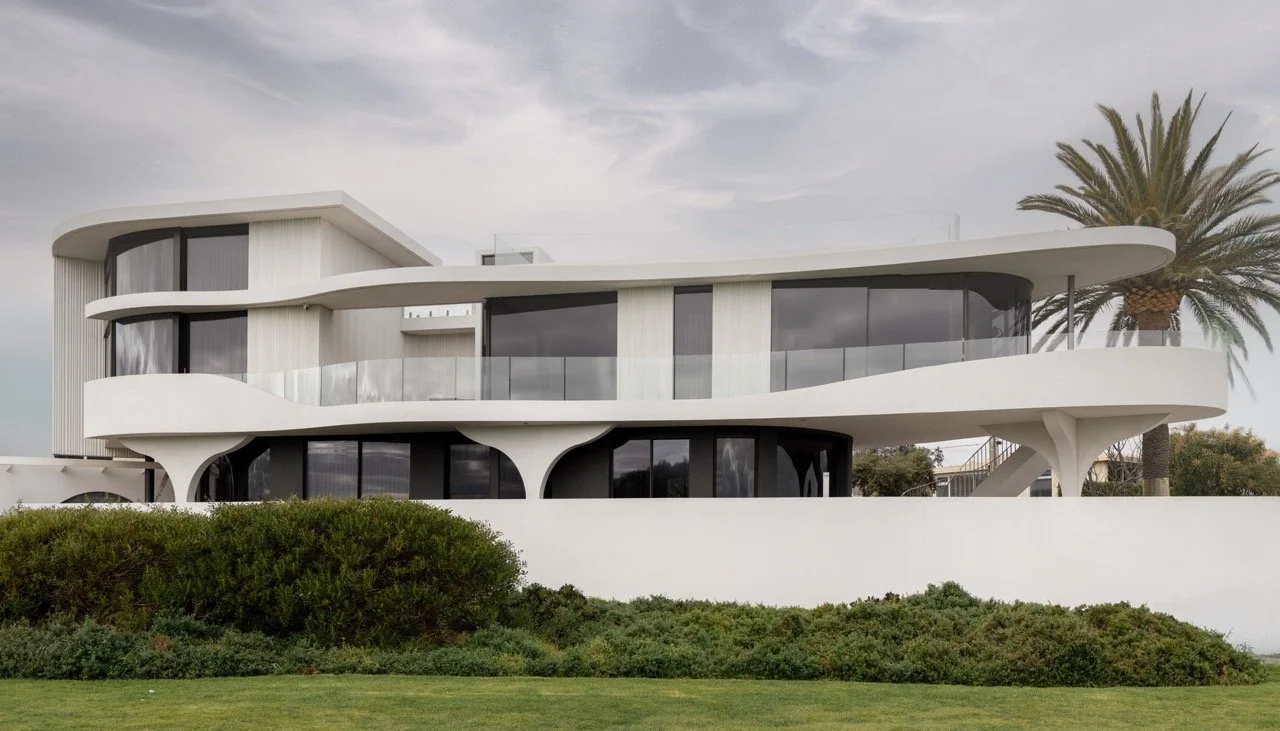

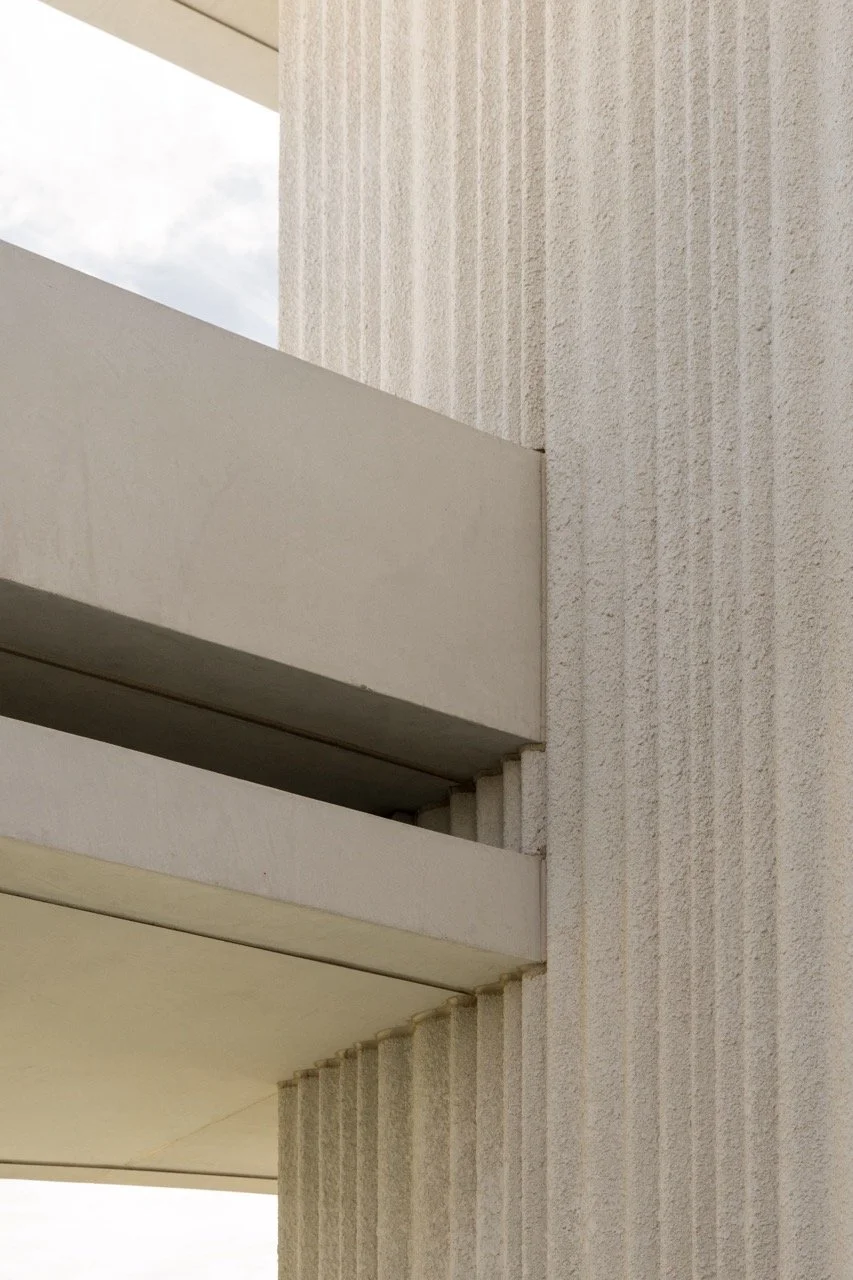

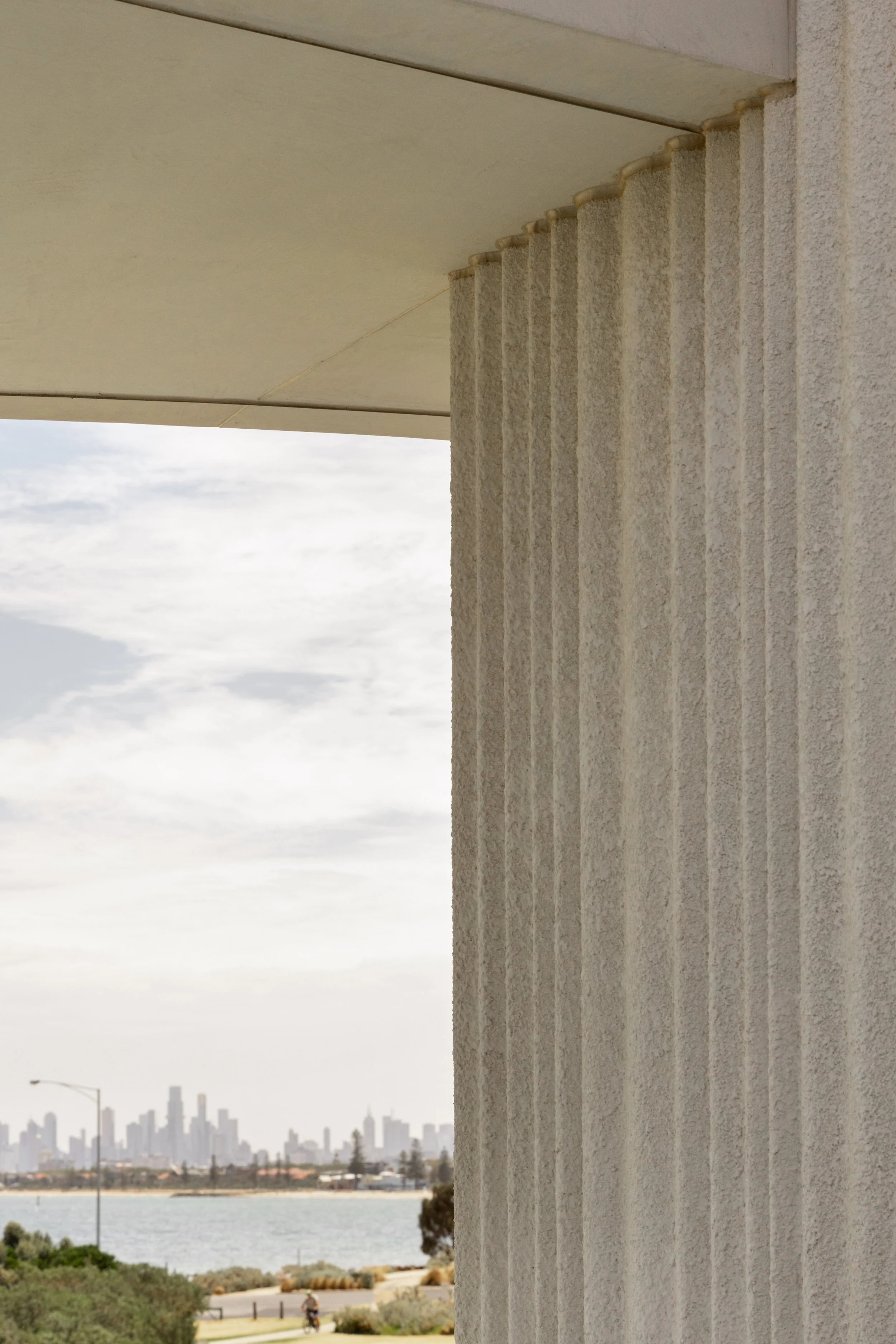

Our first installation is on a bayside home right on the beach, where the facade is exposed to wind, salt air and coastal weather every day. It shows what the system can do in one of the most demanding settings in Victoria, and it looks incredible doing it.
Frequently Asked Questions
-
X-Bond is a versatile product that can be installed to floors, walls and joinery both internally and externally. We have different finishes and sealers available for certain types of applications.
X-Bond Luma: Internal or External Floors, Walls & Joinery
X-Bond Mineral: Internal Walls or External Floors & Walls
X-Bond Blade: External Floors
X-Bond Natural Concrete: Internal or External Walls -
Satin Stone is a surface mounting sealer which forms a membrane over the X-Bond. This sealer is suitable for the following areas:
Internal & External floors, walls, ceilings & joinery (inc. benchtops)
Bathrooms including shower base & walls
The other sealer option is Natural Shield, which is a penetrating sealer. This sealer penetrates into the X-Bond leaving you with a raw concrete look and feel. This sealer is suitable for the following areas:
Internal & External walls
External joinery -

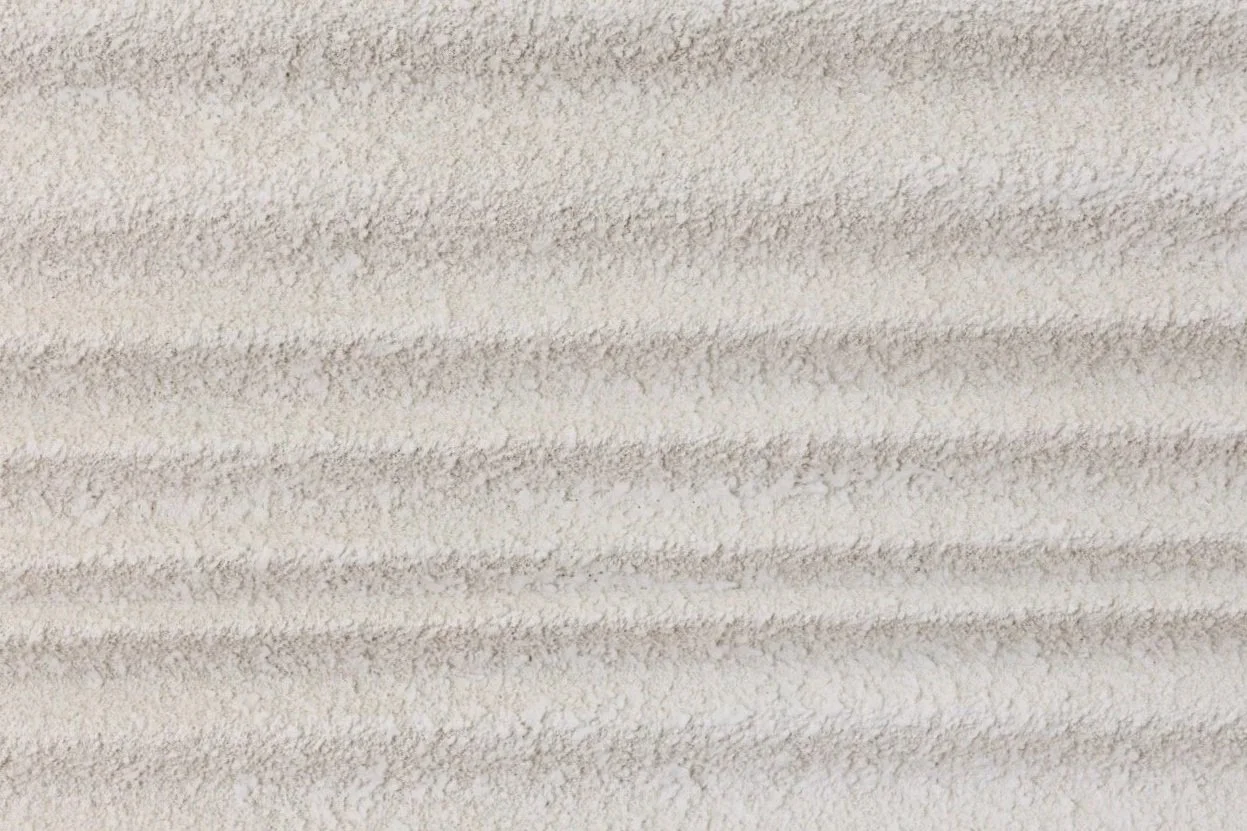

Yes. As X-Bond is a hand trowelled product, there is visible movement, texture, and colour variation in the surface. These are all a natural characteristic of the X-Bond finish, and is what makes this surface so unique!
-
Yes. Almost any stable, hard, and level base is suitable for X-Bond application. Here is a list of the most common substrates:
Floors: Concrete, tiles, 12-18mm compressed sheeting
Walls: Plaster, Villa board, Blue board, FC Sheeting, Concrete, Brick, Foam, Ply & MDF
Joinery: MDF, Compressed Sheeting, Laminate & Marine Ply -
As X-Bond is a hand trowelled finish, we look at each job individually and price off the project plans.
The price to install X-Bond varies depending on the project location, total square meters, area of application, intricacy, height (for walls), and the substrate of application.
Please email sales@altsurfaces.com.au with your project details and drawings so that we can provide you with a quote.
-
Yes, a waterproofing membrane is required to be installed first to any wet areas. We use our own liquid membrane which works excellently with X-Bond as it has advanced anti-fracture and waterproof properties.
-
As X-Bond is sealed and not left in a raw state, it is not pourous. This means water does not seep into the surface.
-
Visit slip ratings by clicking here.
-
If X-Bond is installed in your bathroom, caulking would be required post installation by a professional caulker. It is up to the client if they would like caulking done in other areas of their project, however it's only necessary in wet areas.
